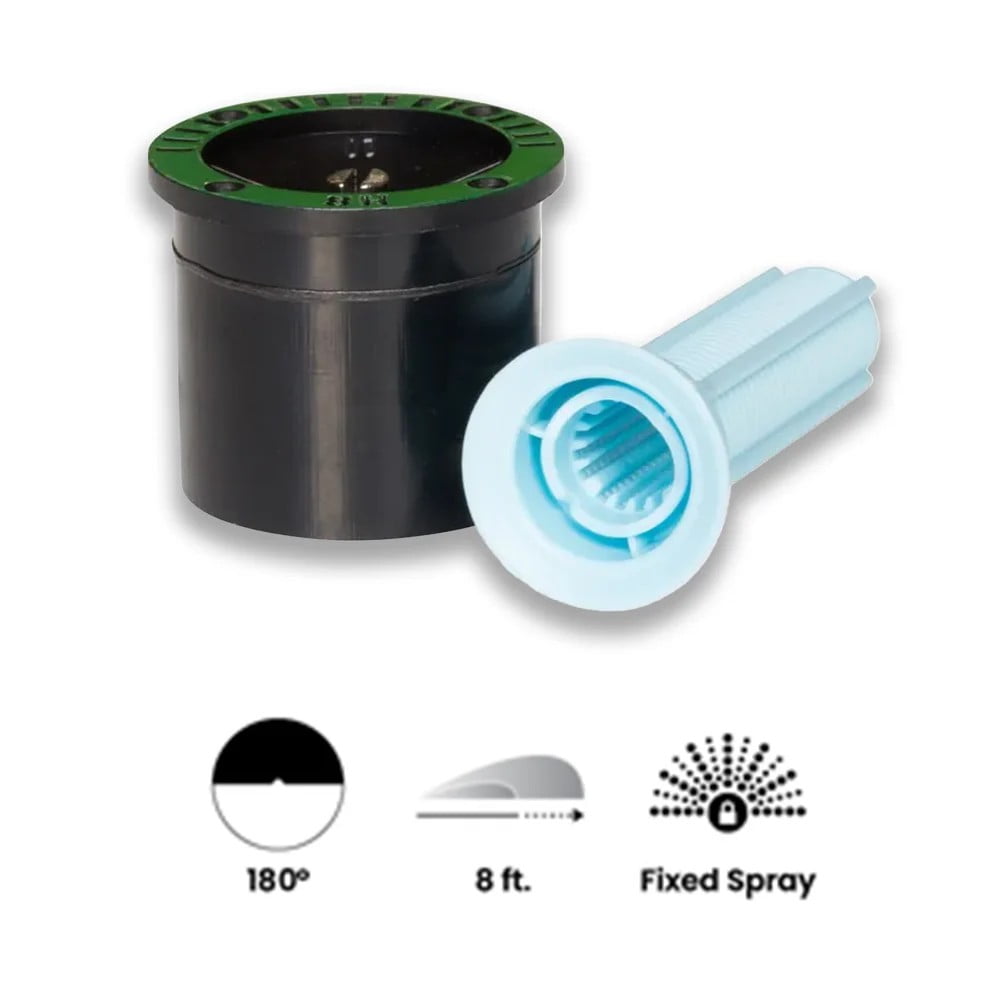

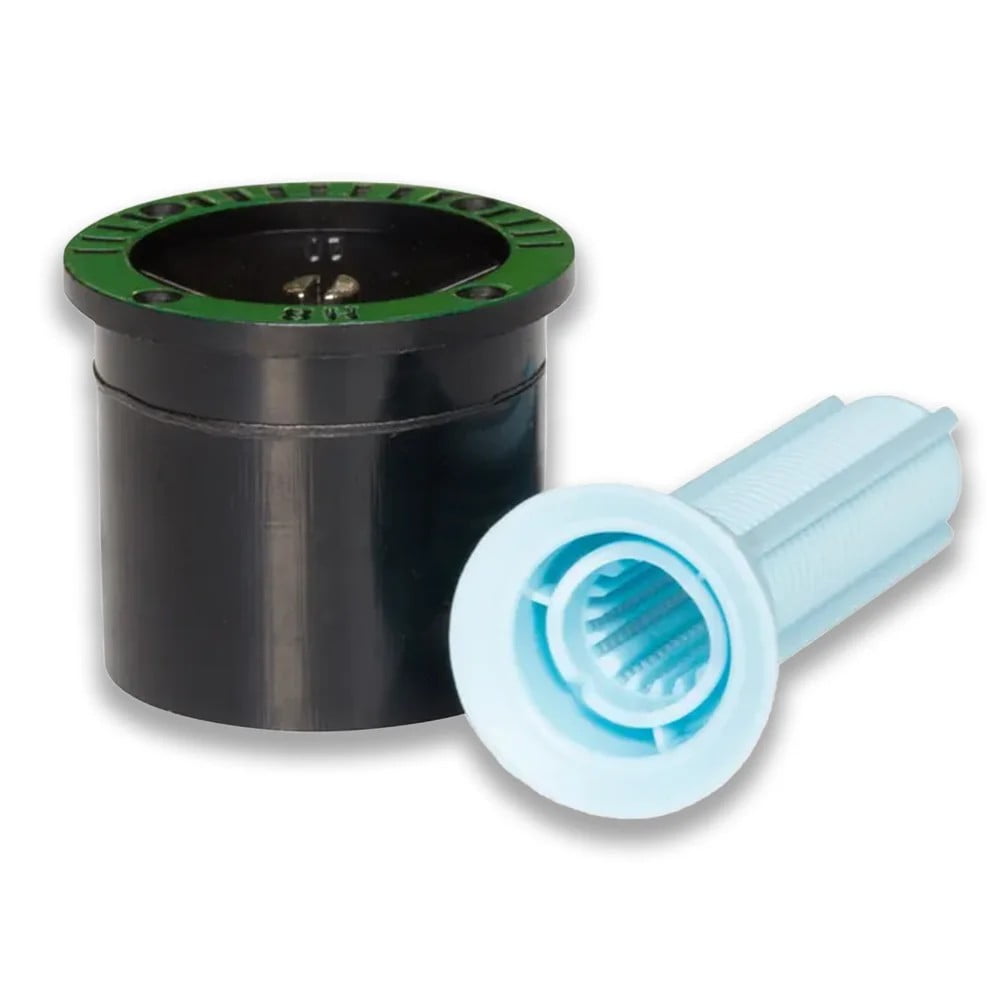

(25) Rain Bird 8H 8' Half-Circle (180°) MPR Sprinkler Nozzles for 1800 Series Heads

The Rain Bird 8H is a fixed-pattern spray nozzle designed to deliver an 8-foot half-circle (180°) spray, ideal for small turf or shrub areas. It belongs to Rain Bird’s Matched Precipitation Rate (MPR) series, which ensures even water distribution when mixing different arcs and radii on the same zone. This nozzle features a stainless steel adjustment screw for fine-tuning flow and radius, and includes a blue fine-mesh filter screen (0.02" x 0.02") to prevent clogging and maintain precise spray performance. It operates optimally between 15 and 30 PSI, with a maximum pressure rating of 30 PSI. The lower flow rate allows more spray heads per zone, improving system efficiency. The 8H fits all Rain Bird spray heads and shrub adapters and is color-coded on top for easy identification during installation and maintenance. It’s a popular choice among contractors for its reliability, design flexibility, and consistent coverage.

• Spray Pattern: Fixed half-circle (180°) with an 8-foot radius

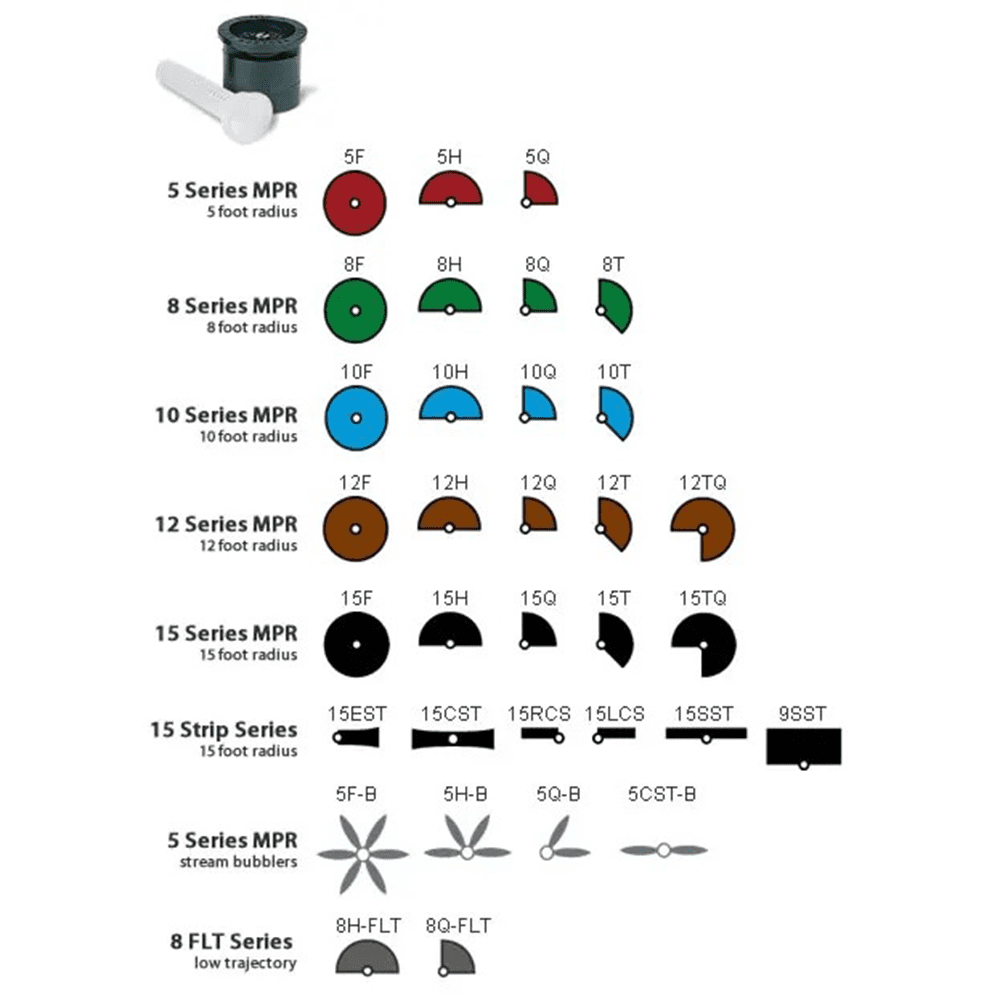

• Matched Precipitation Rate (MPR): Ensures uniform water distribution across mixed arcs and radii
• Operating Pressure Range: 15 to 30 PSI, with optimal performance at 30 PSI
• Filter Screen: Includes a blue fine-mesh (0.02" x 0.02") screen to prevent clogging and maintain spray precision
• Adjustment Screw: Stainless steel screw allows fine-tuning of flow and radius
• Compatibility: Fits all Rain Bird spray heads and shrub adapters
• Water Efficiency: Lower flow rate enables more spray heads per zone
• Color-Coded Top: Green top for quick identification of radius and arc during installation and maintenance
